Titan USA

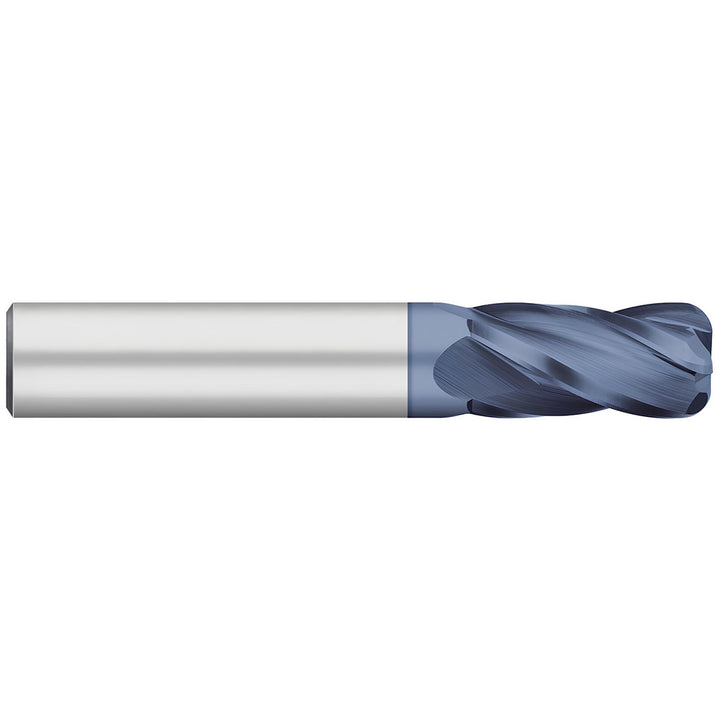

3/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74656
MFR# TC74656Series TC
$266.95List $342.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC74656 is a 3/4 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 3 length of cut, 6 overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0600
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3
Length typeExtra Long
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance-0.0030/0.0000 in
Number of flutes4
Overall length in6
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in3
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
