Titan USA

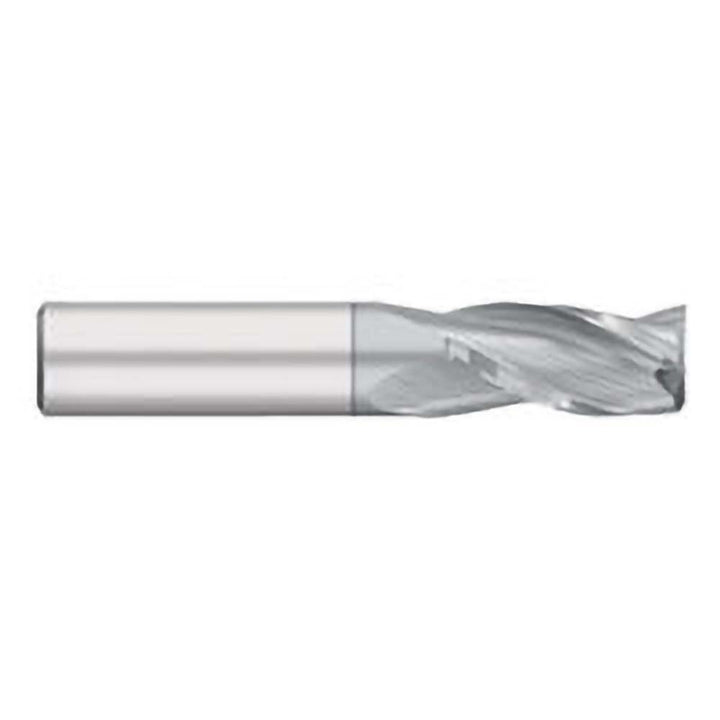

3/64" 3-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90803

MFR# TC90803

$15.14List $19.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/64

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

The Titan USA TC90803 is a 3/64 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1/8 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle30

Length of cut in1/8

Length of cut range0.1000 - 0.2000

Material gradeMicrograin

Mill diameter in3/64

Number of flutes3

Overall length in1-1/2

Shank diameter in1/8

Variable helixNo

Variable indexNo
