Titan USA

1/4" 3-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC91116

MFR# TC91116

$19.30List $24.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

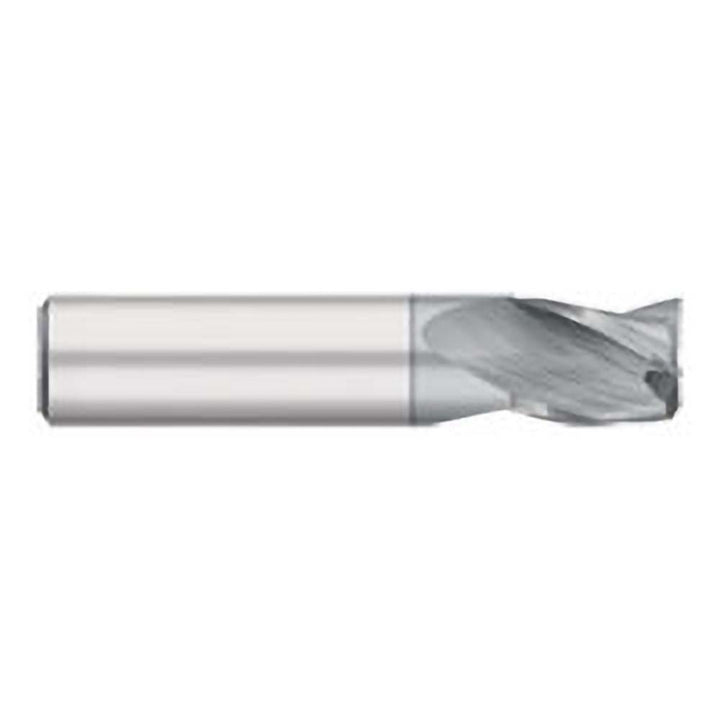

The Titan USA TC91116 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 1/2 length of cut, 2 overall length.

Specifications

CentercuttingYes

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter in1/4

Number of flutes3

Overall length in2

Shank diameter in1/4

Variable helixNo

Variable indexNo
