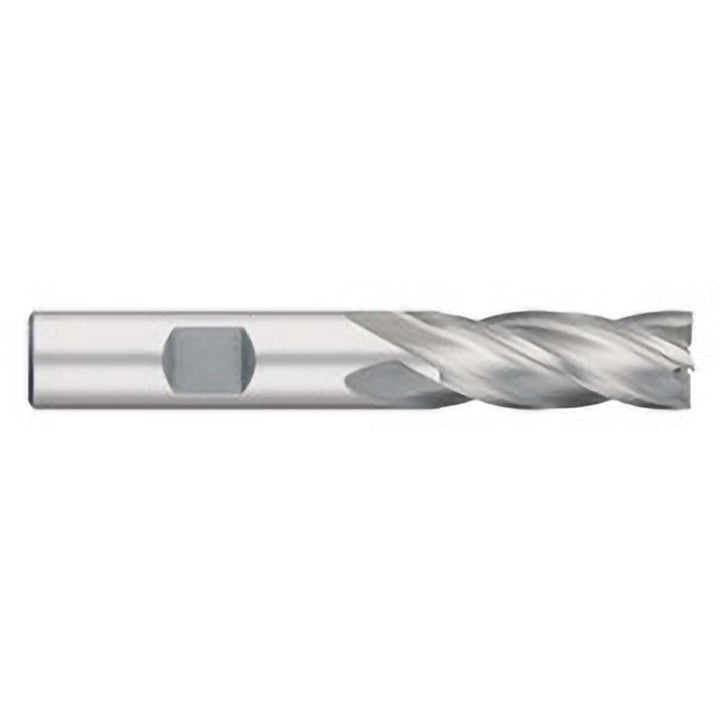

1/2" 4-Flute Cobalt Square End Mill - Titan USA TE81225

Titan USA

1/2" 4-Flute Cobalt Square End Mill - Titan USA TE81225

MFR# TE81225

$44.17List $56.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialCobalt
CoatingBright/Uncoated

Description

The Titan USA TE81225 is a 1/2 4-flute Cobalt (M42) square end mill. 1 length of cut, 2-11/16 overall length.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeM42
Mill diameter in1/2
Number of flutes4
Overall length in2-11/16
Shank diameter in3/8
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Widia1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879527 $73.16 Iscar1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3401163 $90.57 SGS1/2" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36858 $101.89 Seco1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03083833 $117.99
