Tool-Flo

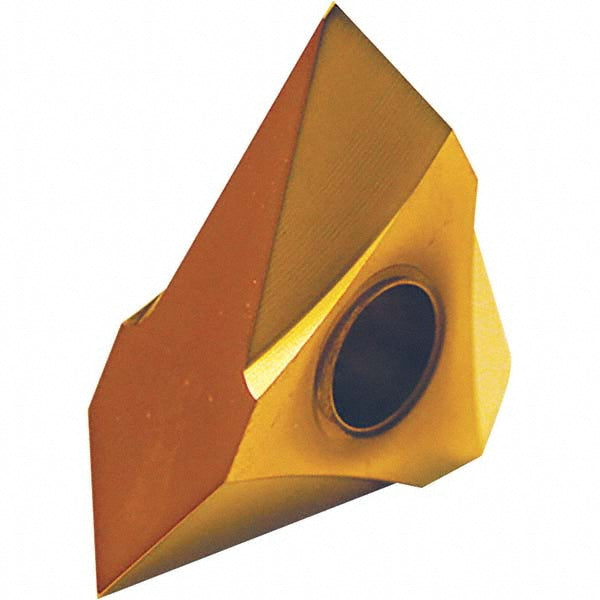

0.5000" IC Solid Carbide Insert, Grade AC50C, AlTiN - Tool-Flo 0139000AC50C
MFR# 0139000AC50CSeries On-Edge
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50C
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 0139000AC50C is a solid carbide indexable insert, grade AC50C, AlTiN coated. Suited for cast iron, steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050
Cutting directionNeutral
External threads per inch5-24
Hole shapeCylindrical
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size code43
Insert styleTNMA
Internal threads per inch5-24
Manufacturer gradeAC50C
Maximum corner radius0.0070
Primary workpiece materialCast Iron; Steel
RakeNeutral
Thickness0.1890
Thread standard60 Deg V
Thread typeExternal; Internal
