Tool-Flo

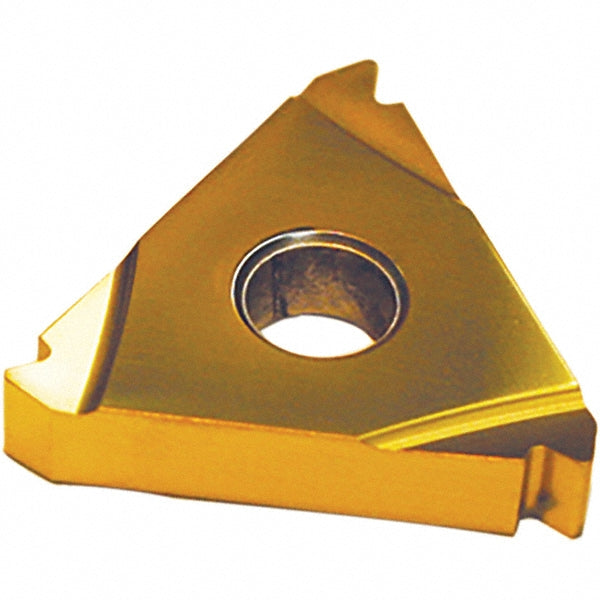

1/2" IC Solid Carbide Insert, Grade AC50D, Coated - Tool-Flo 32158AC50D
MFR# 32158AC50DSeries Laydown
$28.11List $36.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC50D
MaterialSolid Carbide
CoatingCoated
Description
The Tool-Flo 32158AC50D is a solid carbide indexable insert, grade AC50D, Coated coated. Suited for cast iron, steel.
Specifications
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in1/2
Insert materialSolid Carbide
Insert size code43
Insert styleL43
Manufacturer gradeAC50D
Material gradeMicrograin
Number of teeth per side1
Primary workpiece materialCast Iron; Steel
Thickness0.1890
Threads per inch8
Thread standardAPI Round
Thread typeInternal
