Tool-Flo

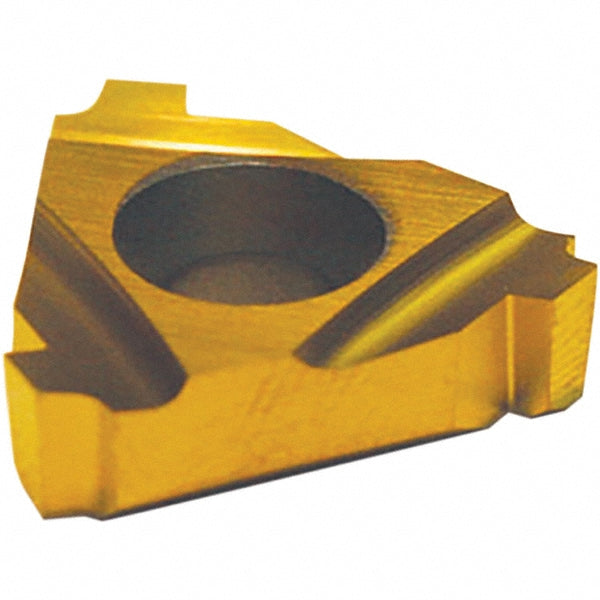

1/2" IC Carbide Insert, Grade AC50D, AlTiN - Tool-Flo 5101700AC50D
MFR# 5101700AC50D
$25.94List $33.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC50D
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 5101700AC50D is a carbide indexable insert, grade AC50D, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Cutting edge to theoretical edge length0.0870
Face of insert to tip centerline0.0950
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert style22ER
Manufacturer gradeAC50D
Number of teeth per side1
Threads per inch5
Thread standardAPI Buttress
Thread typeExternal
