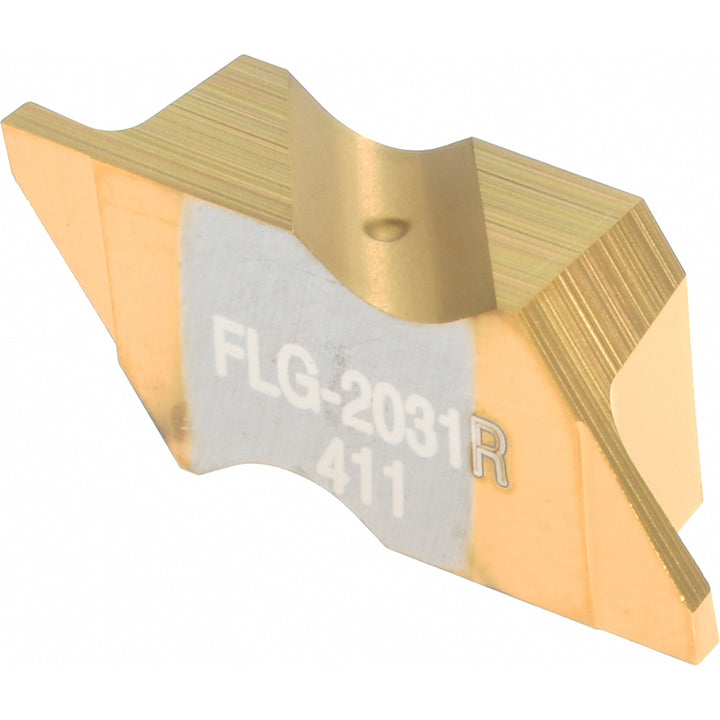

FLG-2031R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 562631RJ5R
MFR# 562631RJ5RISO/ANSI# FLG-2031RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 562631RJ5R is a FLG-2031R solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.2190
Cutting width0.0311
Full radiusNo
Gage diameter in3/16
Insert handRight Hand
Insert materialSolid Carbide
Insert size2031
Insert size code2031
Insert styleFLG
Iso codeFLG-2031R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Msc manufacturer numberFLG-2031R/L
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
