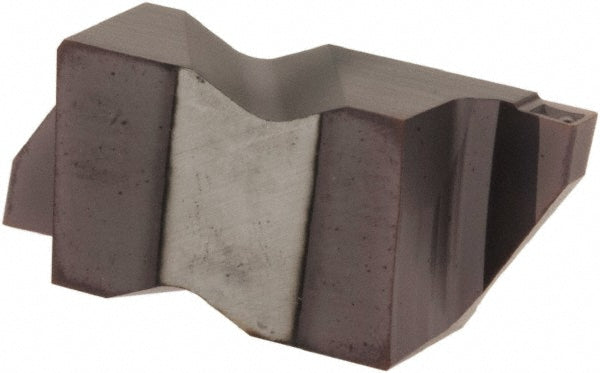

FLG3031L-CB Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563631PLAC3R
MFR# 563631PLAC3RISO/ANSI# FLG3031L-CBCat# FLG-3031L-CBSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 563631PLAC3R is a FLG3031L-CB carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0020 - 0.0050
Cutting height0.3440
Cutting width0.031
Full radiusNo
Insert handLeft Hand
Insert materialCarbide
Insert size3031
Insert size code3031CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG3031L-CB
Lead angle0degree
Manufacturers catalog numberFLG-3031L-CB
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
