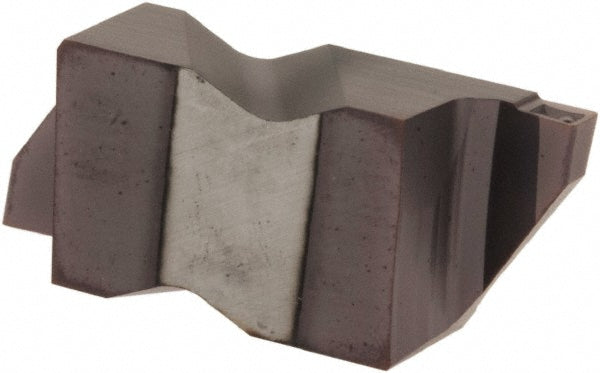

FLG3031R-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563631PRAC50C
MFR# 563631PRAC50CISO/ANSI# FLG3031R-CBCat# FLG-3031R-CBSeries Flo-Lock
$20.74List $26.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563631PRAC50C is a FLG3031R-CB solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.3440
Cutting width0.0310
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3031
Insert size code3031CB
Insert styleFLG
Insert thickness0.1950
Iso codeFLG3031R-CB
Lead angle0
Manufacturers catalog numberFLG-3031R-CB
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Single or double endDouble
