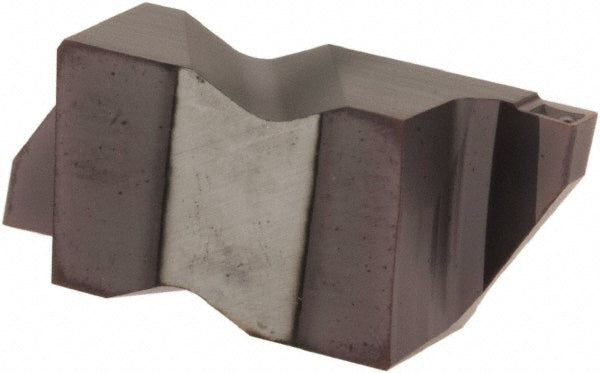

FLG-3031R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563631RAC3R

Tool-Flo

FLG-3031R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563631RAC3R

MFR# 563631RAC3RISO/ANSI# FLG-3031RCat# FLG-3031RSeries Flo-Lock

$25.98List $33.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 563631RAC3R is a FLG-3031R solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.

Specifications

Coating finishAlTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.3440
Cutting width0.0310
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3031
Insert size code3031
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3031R
Lead angle0
Manufacturers catalog numberFLG-3031R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
