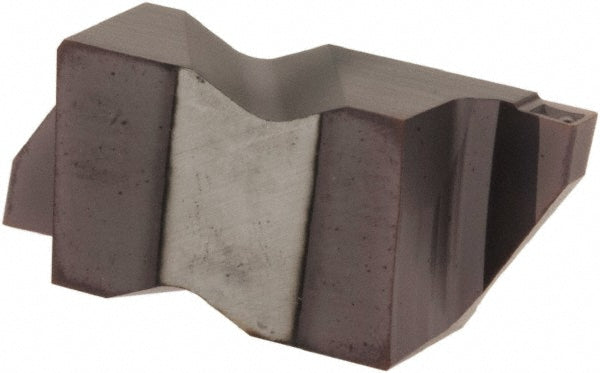

FLG3047L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563647LAC3R

Tool-Flo

FLG3047L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563647LAC3R

MFR# 563647LAC3RISO/ANSI# FLG3047LCat# FLG-3047LSeries Flo-Lock

$25.98List $33.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo 563647LAC3R is a FLG3047L solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.

Specifications

Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0470
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3047
Insert size code3047
Insert styleFLG
Insert thickness0.1950
Iso codeFLG3047L
Lead angle0
Manufacturers catalog numberFLG-3047L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum corner radius0.0100
Maximum depth of cut0.0750
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
