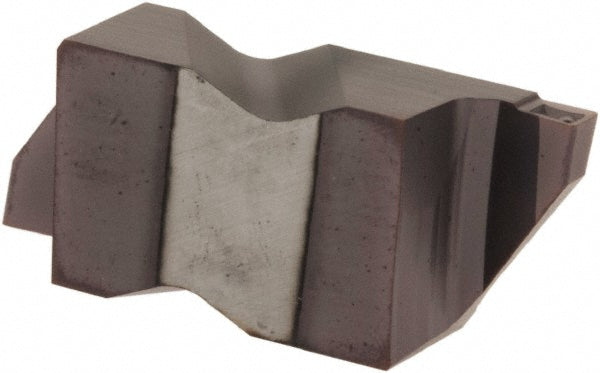

FLG-3062R Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563662RAC50C
MFR# 563662RAC50CISO/ANSI# FLG-3062RCat# FLG-3062RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563662RAC50C is a FLG-3062R solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0620
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3062
Insert size code3062
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3062R
Lead angle0
Manufacturers catalog numberFLG-3062R
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0100
Maximum depth of cut0.1200
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Single or double endDouble
