Tool-Flo

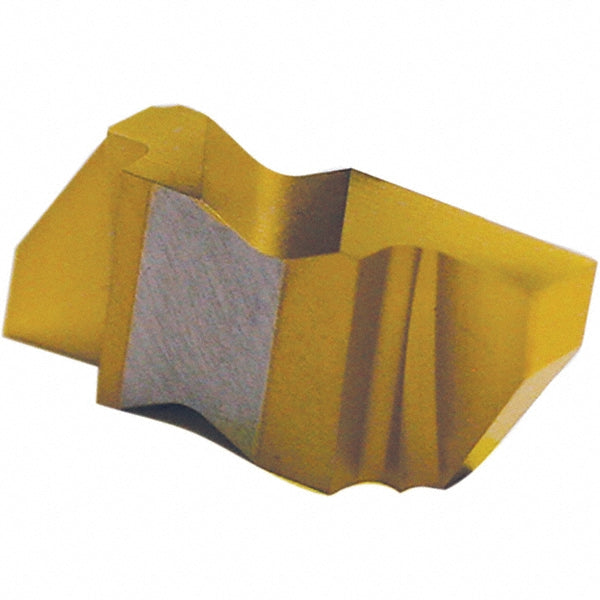

FLG-3072R Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563672RAC3R
MFR# 563672RAC3RISO/ANSI# FLG-3072RCat# FLG-3072RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 563672RAC3R is a FLG-3072R carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.072
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3072
Insert size code3072
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3072R
Lead angle3
Manufacturers catalog numberFLG-3072R
Manufacturer gradeAC3
Maximum depth of cut0.1200
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
