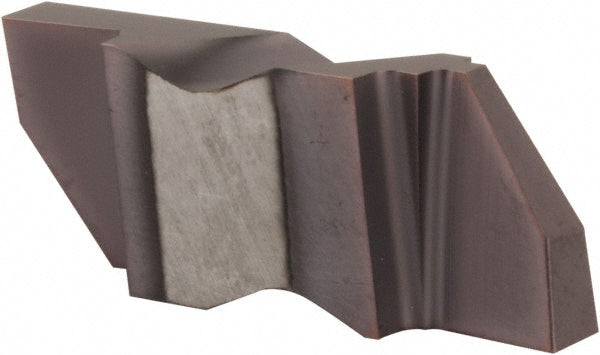

FLG-3078R-CB Solid Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563678PRAC50C
MFR# 563678PRAC50CISO/ANSI# FLG-3078R-CBCat# FLG-3078R-CBSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563678PRAC50C is a FLG-3078R-CB solid carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Chip breakerCB
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.1800
Cutting width0.0780
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3078CB
Insert styleFLG
Iso codeFLG-3078R-CB
Lead angle3
Manufacturers catalog numberFLG-3078R-CB
Manufacturer gradeAC50
Material gradeC5; C6
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
Rake angle0.00
Single or double endDouble
