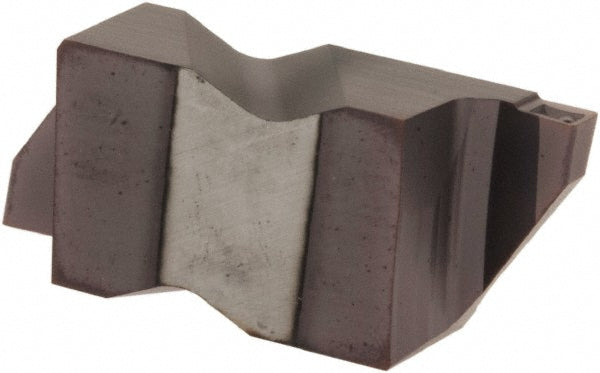

FLG-3094R Carbide Insert, Grade AC50, AlTiN - Tool-Flo 563694RAC50C
MFR# 563694RAC50CISO/ANSI# FLG-3094RCat# FLG-3094RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 563694RAC50C is a FLG-3094R carbide indexable insert, grade AC50, AlTiN coated. Suited for steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.094
Full radiusNo
Insert handRight Hand
Insert materialCarbide
Insert size3094
Insert size code3094
Insert styleFLG
Insert thickness0.1950
Iso codeFLG-3094R
Lead angle0degree
Manufacturers catalog numberFLG-3094R
Manufacturer gradeAC50
Material gradeC5; C6
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Primary workpiece materialSteel
RakeNeutral
