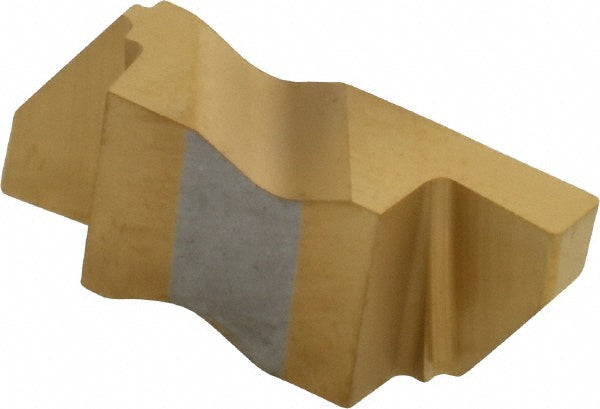

FLG-3097R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 563697RJ5R
MFR# 563697RJ5RISO/ANSI# FLG-3097RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563697RJ5R is a FLG-3097R solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0100 to 0.0150
Cutting height0.3440
Cutting width0.0969
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3097
Insert size code3097
Insert styleFLG
Iso codeFLG-3097R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
