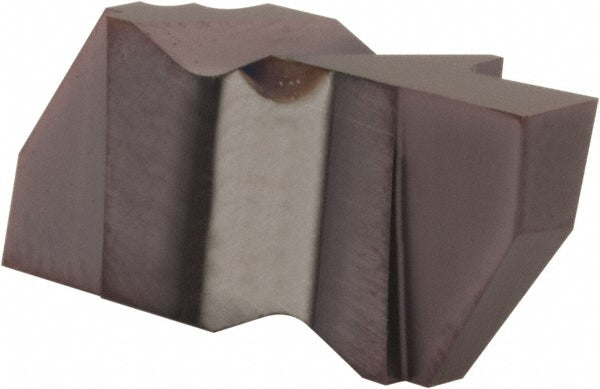

FLG-3125L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 563825LAC3R
MFR# 563825LAC3RISO/ANSI# FLG-3125LCat# FLG-3125LSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 563825LAC3R is a FLG-3125L solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.1800
Cutting width0.1250
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size0.375
Insert size code3125
Insert styleFLG
Iso codeFLG-3125L
Lead angle3
Manufacturers catalog numberFLG-3125L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Rake angle0.00
Single or double endDouble
