Tool-Flo

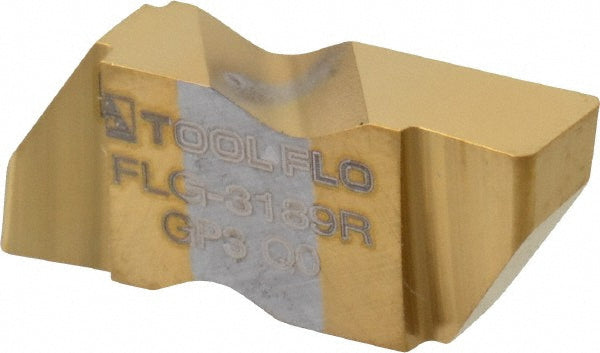

FLG-3189R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 563889RJ5R
MFR# 563889RJ5RISO/ANSI# FLG-3189RSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 563889RJ5R is a FLG-3189R solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0200 - 0.0250
Cutting height0.3440
Cutting width0.1890
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3189
Insert size code3189
Insert styleFLG
Iso codeFLG-3189R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0250
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0200
Msc manufacturer numberFLG-3189R/L
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
