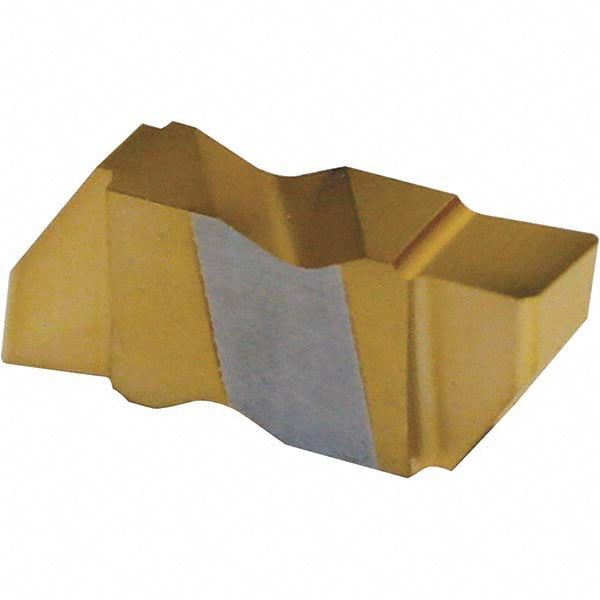

FLGP-2031L Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 572431LAC3R
MFR# 572431LAC3RISO/ANSI# FLGP-2031LCat# FLGP-2031LSeries Flo-Lock
$29.46List $37.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 572431LAC3R is a FLGP-2031L carbide indexable insert, grade AC3R, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0020 - 0.0050
Cutting height0.2190
Cutting width0.031
Full radiusNo
Gage diameter0.1875
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2031
Insert size code2031
Insert styleFLGP
Insert thickness0.1500
Iso codeFLGP-2031L
Lead angle3
Manufacturers catalog numberFLGP-2031L
Manufacturer gradeAC3R
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakePositive
Rake angle5
