Tool-Flo

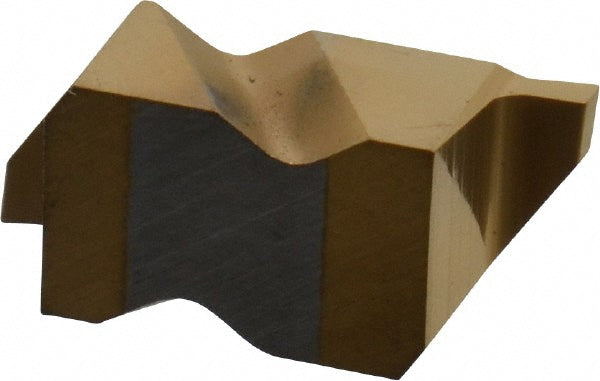

FLGP-2031R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 572431RJ5R
MFR# 572431RJ5RISO/ANSI# FLGP-2031RSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 572431RJ5R is a FLGP-2031R solid carbide indexable insert, grade GP3, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0020 to 0.0050
Cutting height0.2190
Cutting width0.0311
Full radiusNo
Gage diameter0.1875
Insert handRight Hand
Insert materialSolid Carbide
Insert size2031
Insert size code2031
Insert styleFLGP
Iso codeFLGP-2031R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0050
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0020
Msc manufacturer numberFLGP-2031R/L
Multi use toolNo
Overall width0.1500
Primary workpiece materialSteel
RakePositive
Rake angle55.00
