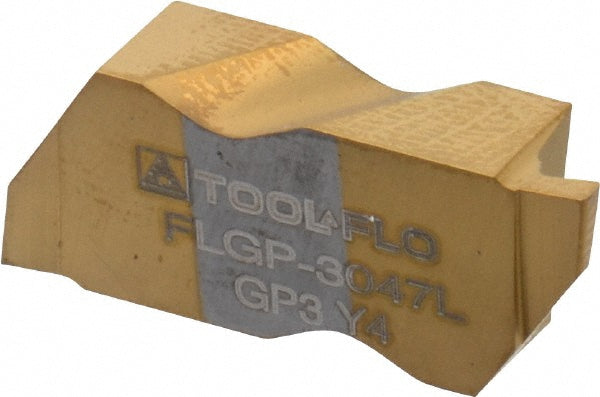

FLGP-3047L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 573447LJ5R
MFR# 573447LJ5RISO/ANSI# FLGP-3047LSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 573447LJ5R is a FLGP-3047L solid carbide indexable insert, grade GP3, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width in3/64
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3047
Insert size code3047
Insert styleFLGP
Iso codeFLGP-3047L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.0413
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Primary workpiece materialSteel
RakePositive
Rake angle55.00
