Tool-Flo

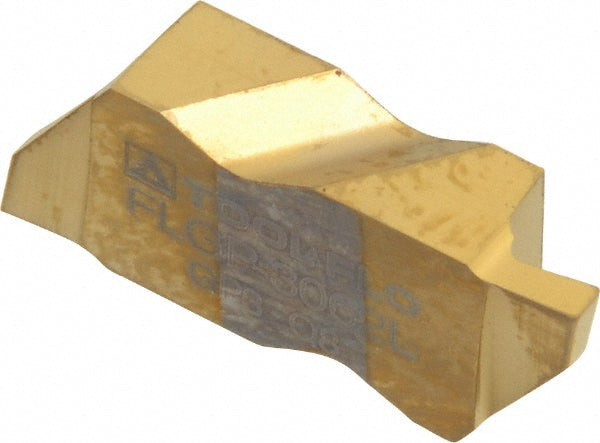

FLGP-3062L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 573462LJ5R
MFR# 573462LJ5RISO/ANSI# FLGP-3062LSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 573462LJ5R is a FLGP-3062L solid carbide indexable insert, grade GP3, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0618
Full radiusNo
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3062
Insert size code3062
Insert styleFLGP
Iso codeFLGP-3062L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1201
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Primary workpiece materialSteel
RakePositive
Rake angle55.00
