Tool-Flo

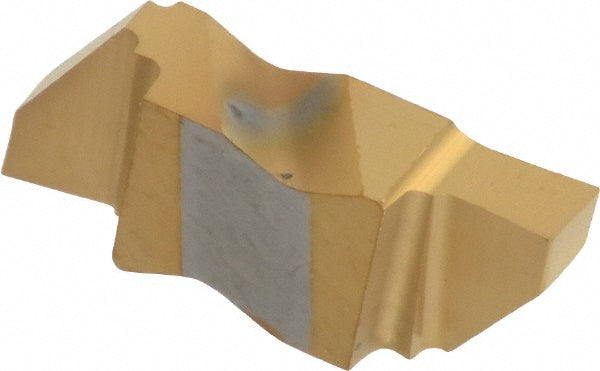

FLGP-3125R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 573625RJ5R
MFR# 573625RJ5RISO/ANSI# FLGP-3125RSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 573625RJ5R is a FLGP-3125R solid carbide indexable insert, grade GP3, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.1252
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size3125
Insert size code3125
Insert styleFLGP
Iso codeFLGP-3125R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum corner radius0.0100
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0050
Msc manufacturer numberFLGP-3125R/L
Multi use toolNo
Overall width0.1950
Primary workpiece materialSteel
RakePositive
Rake angle55.00
