Tool-Flo
FLGP-3189R Carbide Insert, Grade GP3, TiN - Tool-Flo 573689RJ5R
MFR# 573689RJ5RISO/ANSI# FLGP-3189RSeries Flo-Lock
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialCarbide
CoatingTiN
Description

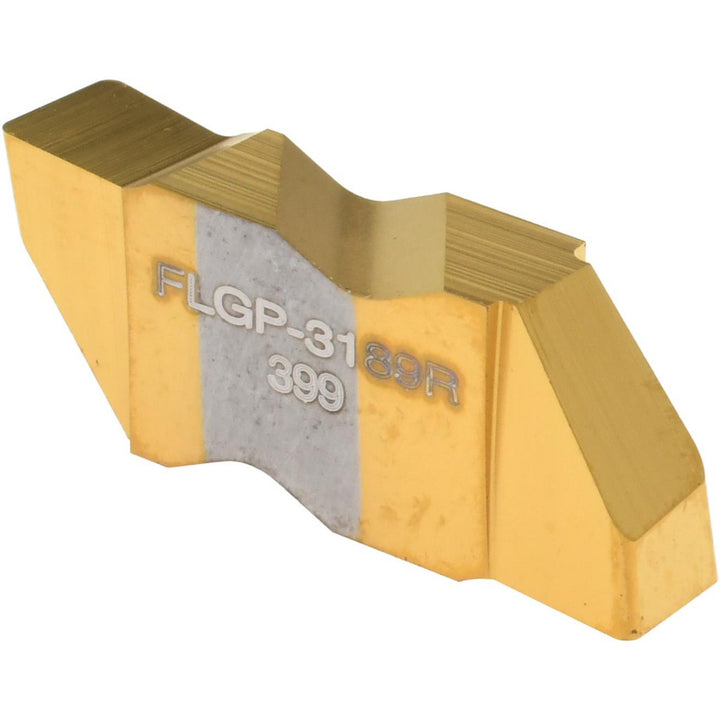

The Tool-Flo 573689RJ5R is a FLGP-3189R carbide indexable insert, grade GP3, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0200 - 0.0250
Cutting height0.3440
Cutting width0.189
Full radiusNo
Gage diameter in3/8
Insert handRight Hand
Insert materialCarbide
Insert size3189
Insert size code3189
Insert styleFLGP
Iso codeFLGP-3189R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.195
Primary workpiece materialSteel
RakePositive
Rake angle55
