Tool-Flo

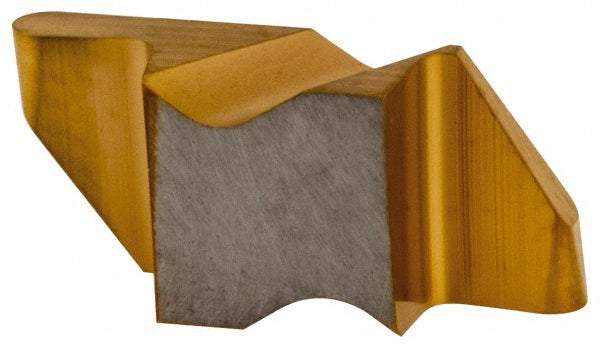

FLR-2031L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 592031LJ5R
MFR# 592031LJ5RISO/ANSI# FLR-2031LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 592031LJ5R is a FLR-2031L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0310
Cutting height0.2190
Cutting width0.0618
Full radiusYes
Gage diameter in3/16
Insert handLeft Hand
Insert materialSolid Carbide
Insert size2031
Insert size code2031
Insert styleFLR
Iso codeFLR-2031L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall width0.1500
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
