Tool-Flo

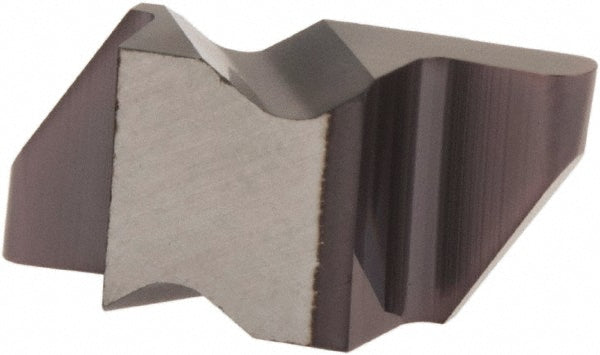

FLR-3031L Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593031LAC3R
MFR# 593031LAC3RISO/ANSI# FLR-3031LCat# FLR-3031LSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 593031LAC3R is a FLR-3031L solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.0620
Full radiusYes
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3031
Insert size code3031
Insert styleFLR
Insert thickness0.1950
Iso codeFLR-3031L
Lead angle0
Manufacturers catalog numberFLR-3031L
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1250
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
