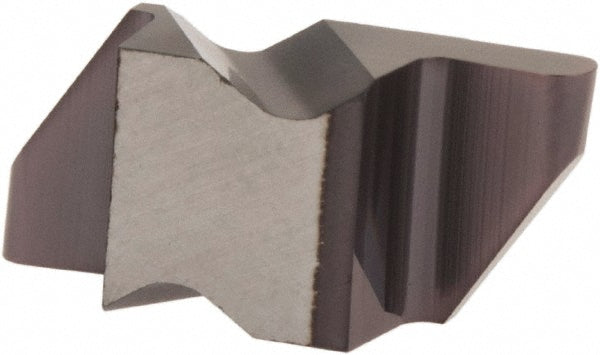

FLR-3047R Solid Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593047RAC3R
MFR# 593047RAC3RISO/ANSI# FLR-3047RCat# FLR-3047RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 593047RAC3R is a FLR-3047R solid carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Cutting height0.3440
Cutting width0.0940
Full radiusYes
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3047
Insert size code3047
Insert styleFLR
Insert thickness0.1950
Iso codeFLR-3047R
Lead angle0
Manufacturers catalog numberFLR-3047R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
Single or double endDouble
