Tool-Flo

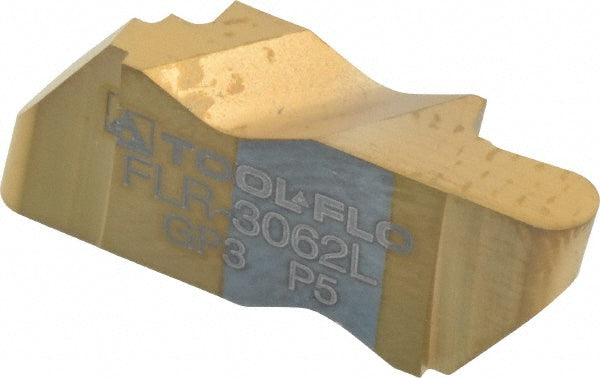

FLR-3062L Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 593062LJ5R
MFR# 593062LJ5RISO/ANSI# FLR-3062LSeries Flo-Lock
$24.28List $31.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 593062LJ5R is a FLR-3062L solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0620
Cutting height0.3440
Cutting width in1/8
Full radiusYes
Gage diameter in3/8
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3062
Insert size code3062
Insert styleFLR
Iso codeFLR-3062L
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum depth of cut0.1799
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.1950
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
