Tool-Flo

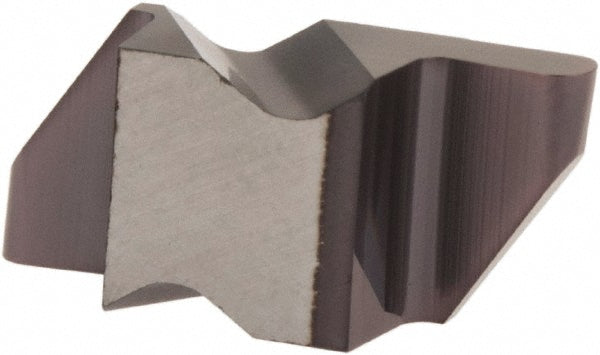

FLR-3062R Carbide Insert, Grade AC3, AlTiN - Tool-Flo 593062RAC3R
MFR# 593062RAC3RISO/ANSI# FLR-3062RCat# FLR-3062RSeries Flo-Lock
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3
MaterialCarbide
CoatingAlTiN
Description
The Tool-Flo 593062RAC3R is a FLR-3062R carbide indexable insert, grade AC3, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0620
Cutting height0.3440
Cutting width0.125
Full radiusYes
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert size code3062
Insert styleFLR
Insert thickness0.1950
Iso codeFLR-3062R
Lead angle0
Manufacturers catalog numberFLR-3062R
Manufacturer gradeAC3
Material gradeC2; C3
Maximum depth of cut0.1800
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
RakeNeutral
