Tool-Flo

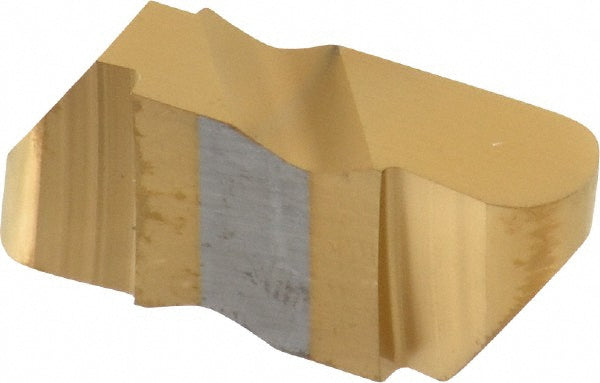

FLR-4125R Solid Carbide Insert, Grade GP3, TiN - Tool-Flo 594225RJ5A
MFR# 594225RJ5AISO/ANSI# FLR-4125RSeries Flo-Lock
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP3
MaterialSolid Carbide
CoatingTiN
Description
The Tool-Flo 594225RJ5A is a FLR-4125R solid carbide indexable insert, grade GP3, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/8
Cutting height0.4530
Cutting width in1/4
Full radiusYes
Gage diameter in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size4125
Insert size code4125
Insert styleFLR
Iso codeFLR-4125R
Lead angle3
Manufacturer gradeGP3
Material gradeMicrograin
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Msc manufacturer numberFLR-4125R/L
Multi use toolNo
Overall width0.2550
RakePositive
Rake angle55.00
Secondary workpiece materialStainless Steel
