Tool-Flo
Carbide Insert, Grade AC50 - Tool-Flo 603600CLAC50C
MFR# 603600CLAC50CSeries Flo-Lock
$22.65List $29.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC50
MaterialCarbide
Description

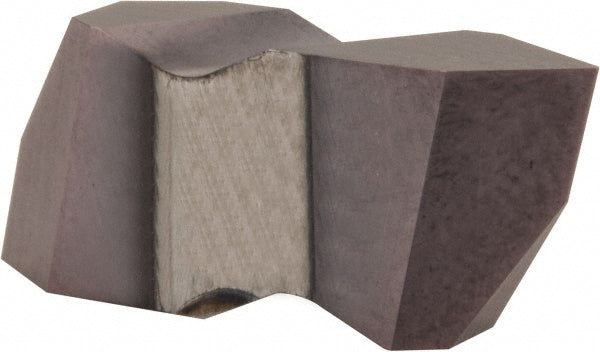

The Tool-Flo 603600CLAC50C is a carbide indexable insert, grade AC50.
Specifications
ChipbreakerCB
Coating processPVD
External pitch8-20 TPI
Finish coatingCoated
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size3L
Insert styleFLT
Internal pitch8-12 TPI
Manufacturer gradeAC50
Material gradeC5; C6
Maximum corner radius0.0080
Minimum corner radius0.0050
Thickness0.1950in
Thread standardNV
Thread typeInternal; External
