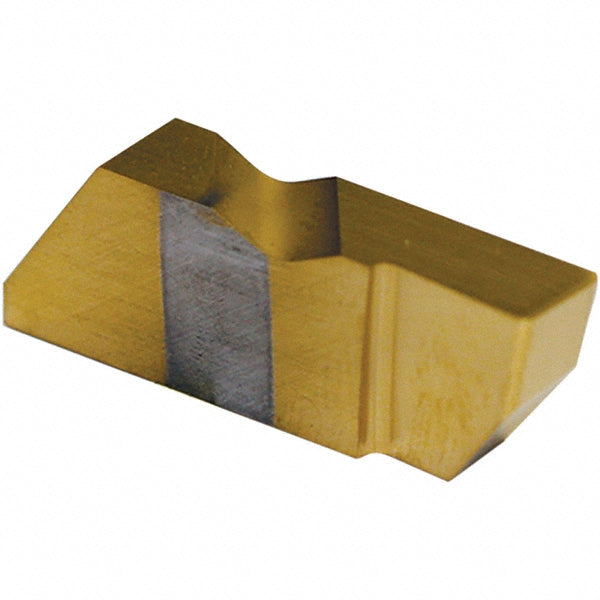

FLGD3125R Solid Carbide Insert, Grade AC3R, AlTiN - Tool-Flo 6334125RAC3R
MFR# 6334125RAC3RISO/ANSI# FLGD3125RCat# FLGD-3125RSeries Flo-Lock
$22.74List $29.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC3R
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo 6334125RAC3R is a FLGD3125R solid carbide indexable insert, grade AC3R, AlTiN coated. Suited for cast iron, non-ferrous metal, stainless steel.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.1250
Full radiusNo
Gage diameter0.3750
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3125
Insert size code3125
Insert styleFLGD
Insert thickness0.1950
Iso codeFLGD3125R
Manufacturers catalog numberFLGD-3125R
Manufacturer gradeAC3R
Maximum corner radius0.0100
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0050
Multi use toolNo
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel
Single or double endSingle
