Tool-Flo
FLGD-3125L-CB Carbide Insert, Grade GP50, TiN - Tool-Flo 6335125PLN4C
MFR# 6335125PLN4CISO/ANSI# FLGD-3125L-CBCat# FLGD-3125L-CBSeries Flo-Lock
$20.69List $26.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description

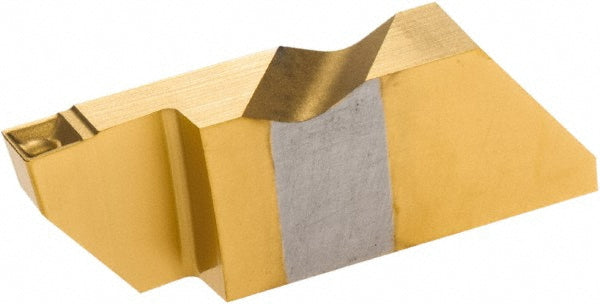

The Tool-Flo 6335125PLN4C is a FLGD-3125L-CB carbide indexable insert, grade GP50, TiN coated.
Specifications
Chip breakerCB
Coating finishTiN
Coating processPVD
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.125
Full radiusNo
Gage diameter0.3750
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3125
Insert size code3125CB
Insert styleFLGD
Insert thickness0.1950
Iso codeFLGD-3125L-CB
Manufacturers catalog numberFLGD-3125L-CB
Manufacturer gradeGP50
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Secondary workpiece materialSteel
