Tool-Flo

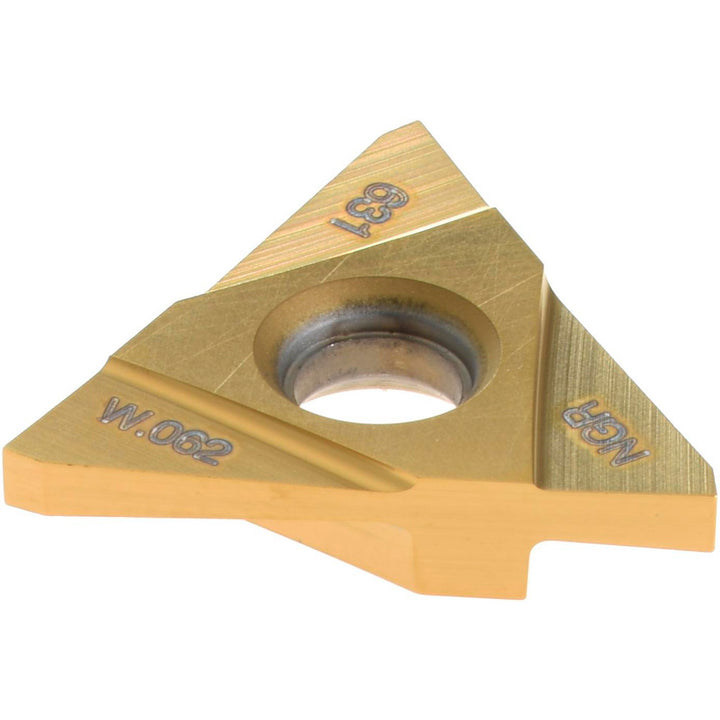

TNMC 32 NGR W.062 Carbide Insert, Grade GP50, TiN - Tool-Flo R0906200N4C
MFR# R0906200N4CISO/ANSI# TNMC 32 NGR W.062Series On-Edge
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo R0906200N4C is a TNMC 32 NGR W.062 carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.0618
Full radiusNo
Gage diameter in3/8
Inscribed circle0.3750
Insert handRight Hand
Insert materialCarbide
Insert size32
Insert size code32NGRW062
Insert styleTNMC
Iso codeTNMC 32 NGR W.062
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.127
RakePositive
Rake angle2
Secondary workpiece materialSteel
