Tool-Flo

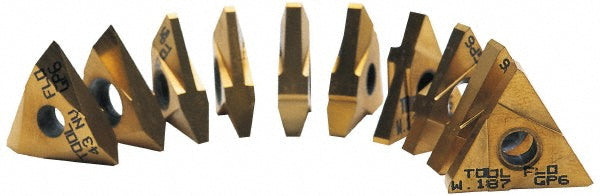

0.5000" IC Carbide Insert, Grade GP50, TiN - Tool-Flo R3906200N4C
MFR# R3906200N4C
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo R3906200N4C is a carbide indexable insert, grade GP50, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.0618
Full radiusNo
Gage diameter in1/2
Inscribed circle0.5000
Insert handRight Hand
Insert materialCarbide
Insert size43
Insert styleTNMA
Manufacturer gradeGP50
Maximum depth of cut0.1560
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall width0.189
Rake angle2
