Tool-Flo

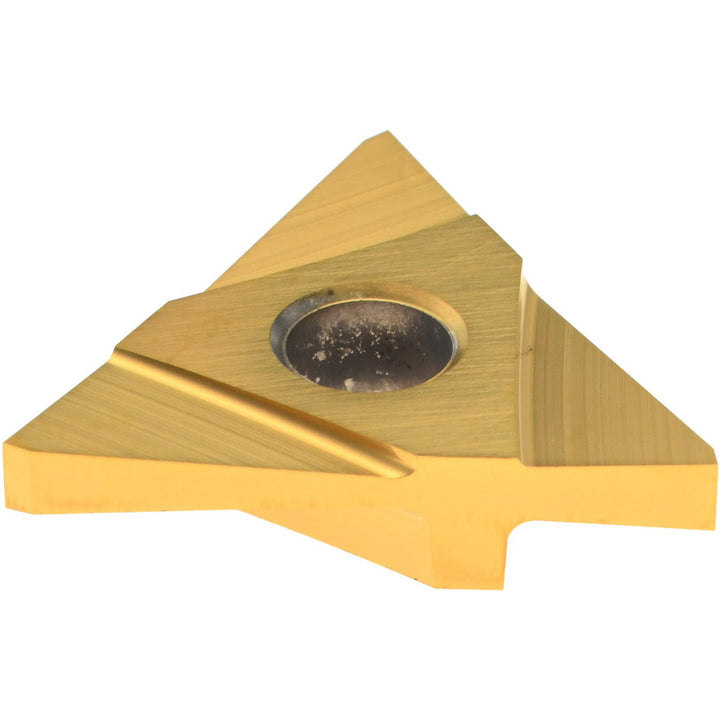

TNMA 43 NGR W.094 Carbide Insert, Grade GP50, TiN - Tool-Flo R3909400N4C
MFR# R3909400N4CISO/ANSI# TNMA 43 NGR W.094Series On-Edge
$25.23List $32.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGP50
MaterialCarbide
CoatingTiN
Description
The Tool-Flo R3909400N4C is a TNMA 43 NGR W.094 carbide indexable insert, grade GP50, TiN coated. Suited for steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting width0.0941
Full radiusNo
Gage diameter in1/2
Inscribed circle0.5000
Insert handRight Hand
Insert materialCarbide
Insert size43
Insert size code43NGRW094
Insert styleTNMA
Iso codeTNMA 43 NGR W.094
Manufacturer gradeGP50
Material gradeC5; C6
Maximum depth of cut0.2150
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Overall width0.189
Primary workpiece materialSteel
RakePositive
Rake angle2
Secondary workpiece materialSteel
