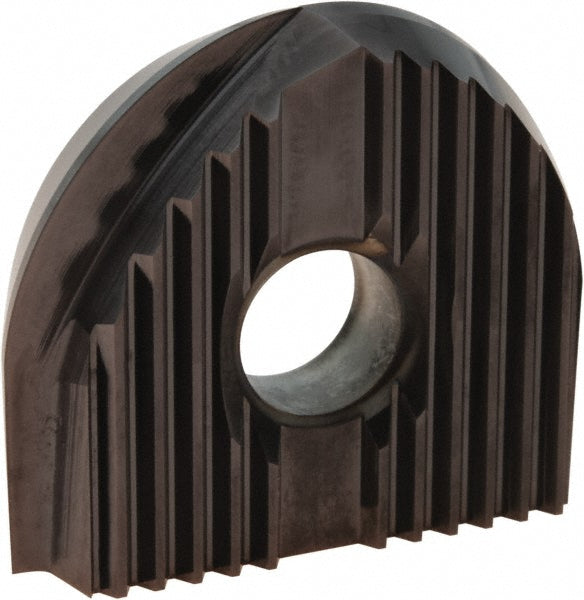

Ball Nose 1" IC Solid Carbide Insert, Grade ZS26D, AlTiN - Tool-Flo TBNR375NZS26D
MFR# TBNR375NZS26DCat# TBNR-375-N-ZS26DSeries TBNR
$38.28List $43.71
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeBall Nose
GradeZS26D
MaterialSolid Carbide
CoatingAlTiN
Description
The Tool-Flo TBNR375NZS26D is a solid carbide indexable insert, grade ZS26D, AlTiN coated. Suited for steel, stainless steel, hard material, non-ferrous metal.
Specifications
Ansi codeTBNR-375-N-ZS26D
Chip breakerN
Coating finishAlTiN
Coating processPVD
Convex radius0.3750
Corner radius in3/16
Cutter series compatibilityTBNS-WT; TBNC-WT; TBNS-WS; TBNC-WS
Cutting edge styleHoned
Hole diameter0.1681
Inscribed circle in1
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size37
Insert size code375
Insert styleTBNR
Manufacturers catalog numberTBNR-375-N-ZS26D
Manufacturer gradeZS26D
Material applicationSteel; Stainless Steel; High-Temperature Alloy; Non-Ferrous Metal
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Hard Material; Non-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle1.00
Single or double sided insertSingle
StandardsANSI
Thickness0.1180
Thickness range0.1000 to 0.1250
Width in3/8
