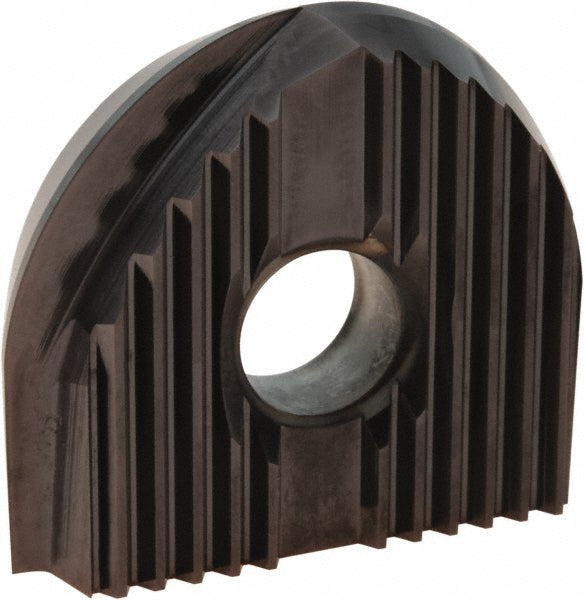

Ball Nose 1" IC Solid Carbide Insert, Grade ZS26D, AlTiN - Tool-Flo TBNR500PZS26D

Tool-Flo

Ball Nose 1" IC Solid Carbide Insert, Grade ZS26D, AlTiN - Tool-Flo TBNR500PZS26D

MFR# TBNR500PZS26DCat# TBNR-500-P-ZS26DSeries TBNR

$42.19List $48.18 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeBall Nose
GradeZS26D
MaterialSolid Carbide
CoatingAlTiN

Description

The Tool-Flo TBNR500PZS26D is a solid carbide indexable insert, grade ZS26D, AlTiN coated. Suited for steel, stainless steel, hard material, non-ferrous metal.

Specifications

Ansi codeTBNR-500-P-ZS26D
Chip breakerP
Coating finishAlTiN
Coating processPVD
Convex radius0.5000
Corner radius in1/4
Cutter series compatibilityTBNS-WT; TBNC-WT; TBNS-WS; TBNC-WS
Cutting edge styleHoned
Hole diameter0.2098
Inscribed circle in1
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size50
Insert size code500
Insert styleTBNR
Manufacturers catalog numberTBNR-500-P-ZS26D
Manufacturer gradeZS26D
Material applicationSteel; Stainless Steel; High-Temperature Alloy; Non-Ferrous Metal
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Hard Material; Non-Ferrous Metal
RakePositive
Rake angle5
Relief angle1.00
Single or double sided insertSingle
StandardsANSI
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
