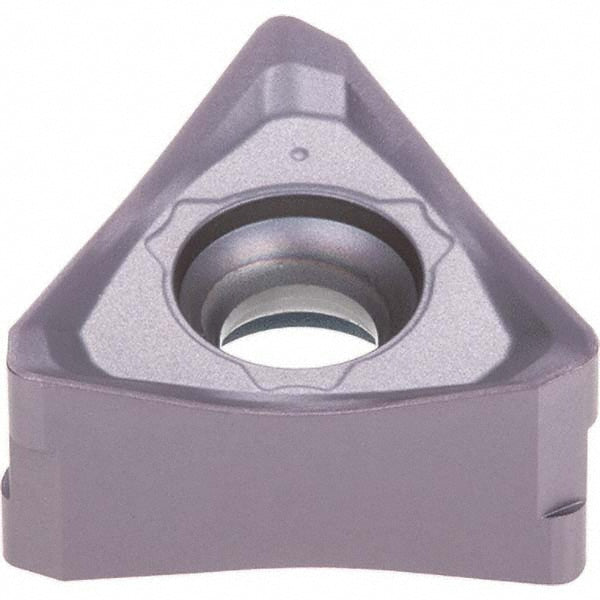

TNGU120708PER-MJ AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6730264
MFR# 6730264ISO/ANSI# TNGU120708PER-MJ AH3135Cat# TNGU120708PER-MJSeries TNGU
$31.65List $40.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAH3135
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6730264 is a TNGU120708PER-MJ AH3135 solid carbide indexable insert, grade AH3135, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeTNGU120708PER-MJ AH3135
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityTPTN12; EPTN12
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size12
Insert size code120708
Insert styleTNGU
Iso codeTNGU120708PER-MJ AH3135
Length0.8268
Length of cut (mm)21.00
Length range0.7000 to 0.9000
Manufacturers catalog numberTNGU120708PER-MJ
Manufacturer gradeAH3135
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP30; M30
Maximum depth of cut0.4330
Multi use toolNo
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsISO
Thickness0.2770
Thickness range0.2500 to 0.3500
Width0.8268
