Tungaloy

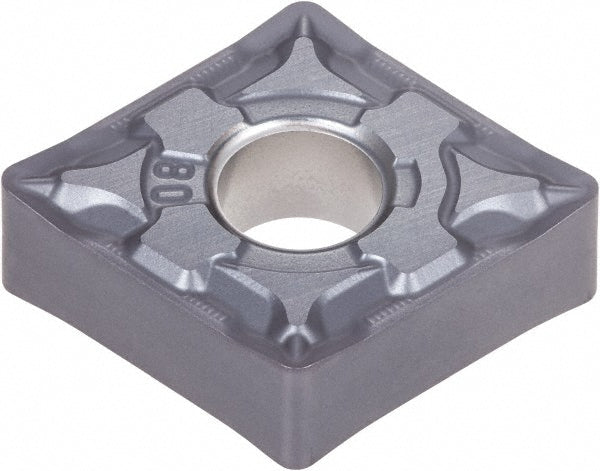

CNMG120404-HRF Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741632
MFR# 6741632ISO/ANSI# CNMG 431 HRFSeries CNMG-HRF
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeAH8015
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6741632 is a CNMG120404-HRF carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerHRF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 431 HRF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-HRF
Length range0.5000 - 0.6000
Manufacturers catalog number6741632
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.0590
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
