Tungaloy

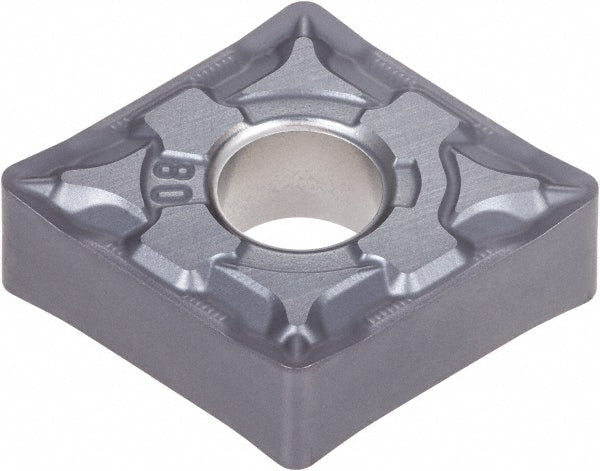

CNMG432HRM Carbide Insert, Grade AH8005, TiAlN - Tungaloy 6741639
MFR# 6741639ISO/ANSI# CNMG120408Series CNMG-HRM
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAH8005
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6741639 is a CNMG432HRM carbide indexable insert, grade AH8005, TiAlN coated. Suited for stainless steel, superalloys & titanium, hard material.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerHRM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Industry standard numberCNMG 432 HRM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG432HRM
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6741639
Manufacturer gradeAH8005
Material gradeM01; M10; S01; S10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
