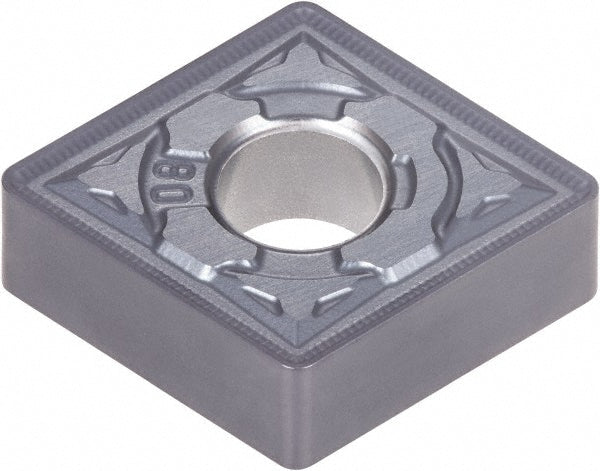

CNMG1601612-HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741646

Tungaloy

CNMG1601612-HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741646

MFR# 6741646ISO/ANSI# CNMG 543 HRMSeries CNMG-HRM

$26.08List $33.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeAH8015
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6741646 is a CNMG1601612-HRM carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerHRM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG 543 HRM
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG1601612-HRM
Length range0.6000 - 0.6500
Manufacturers catalog number6741646
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
