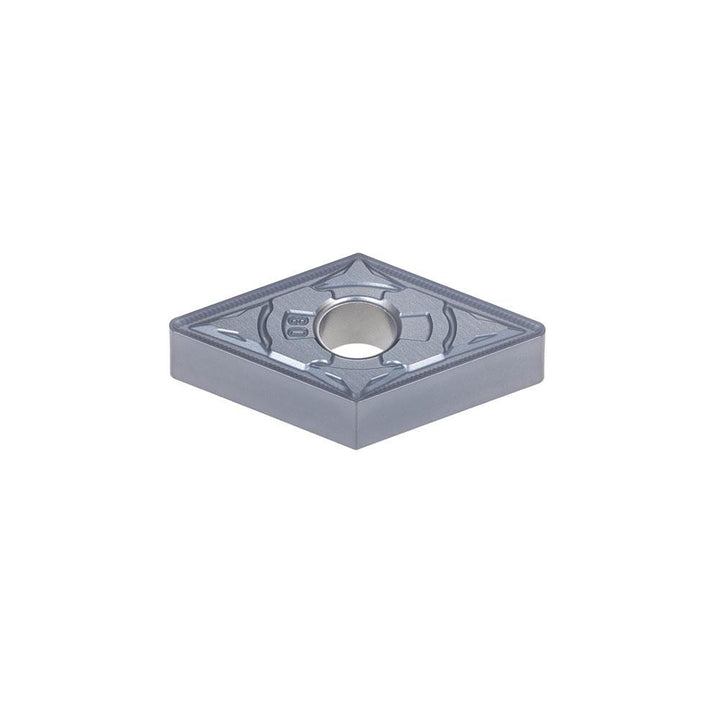

DNMG431-HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741660

Tungaloy

DNMG431-HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741660

MFR# 6741660ISO/ANSI# DNMG 431 HRMSeries DNMG-HRM

$20.97List $26.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeAH8015
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6741660 is a DNMG431-HRM carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerHRM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 431 HRM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG431-HRM
Length range0.7000 - 10.0000
Manufacturers catalog number6741660
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
