Tungaloy

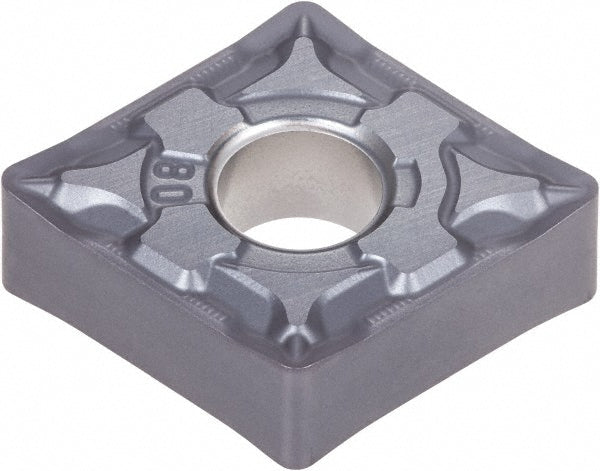

SNMG543HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741682
MFR# 6741682ISO/ANSI# SNMG 543 HRMSeries SNMG-HRM
$25.57List $32.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeAH8015
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6741682 is a SNMG543HRM carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerHRM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMG 543 HRM
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG543HRM
Length range0.6000 - 0.6500
Manufacturers catalog number6741682
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
