Tungaloy

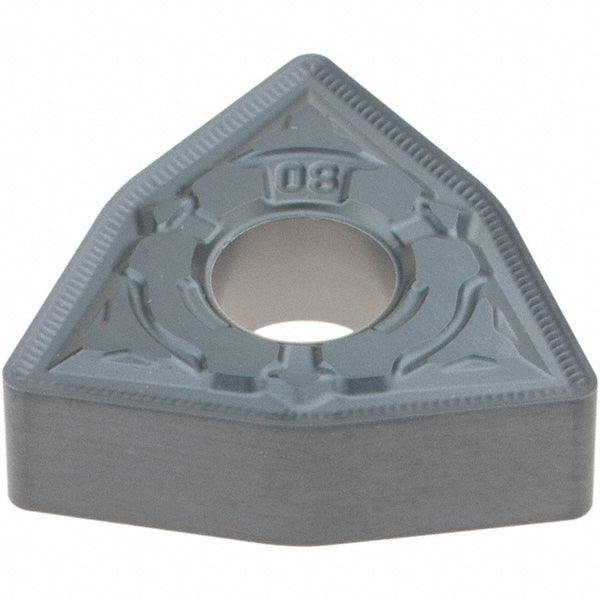

WNMG432HRM Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6741704
MFR# 6741704ISO/ANSI# WNMG 432 HRMSeries WNMG-HRM
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAH8015
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6741704 is a WNMG432HRM carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerHRM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG 432 HRM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG432HRM
Length range0.6500 - 0.7000
Manufacturers catalog number6741704
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6860in
Wiper edgeNo
