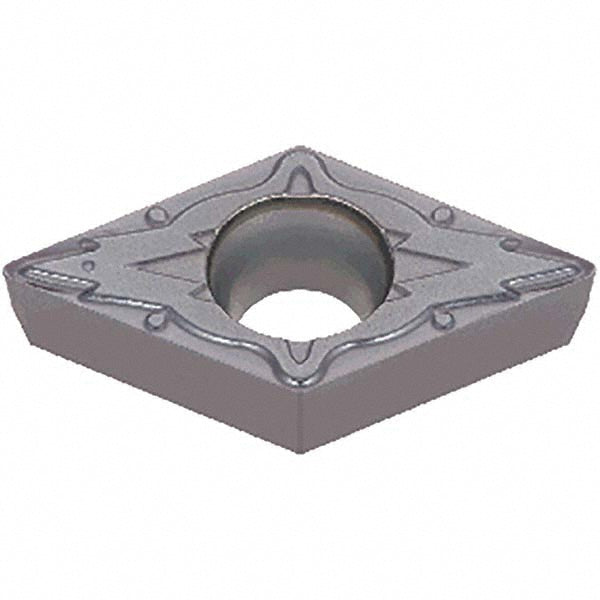

DCMT 11T304 Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6746101

Tungaloy

DCMT 11T304 Carbide Insert, Grade AH8015, TiAlN - Tungaloy 6746101

MFR# 6746101ISO/ANSI# DCMT 32.51 PSFSeries DCMT-PSF

$17.97List $23.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeAH8015
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6746101 is a DCMT 11T304 carbide indexable insert, grade AH8015, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerPSF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard numberDCMT 32.51 PSF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11T304
Length range0.7000 - 10.0000
Manufacturers catalog number6746101
Manufacturer gradeAH8015
Material gradeM10; M20; S10; S20
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle20
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
