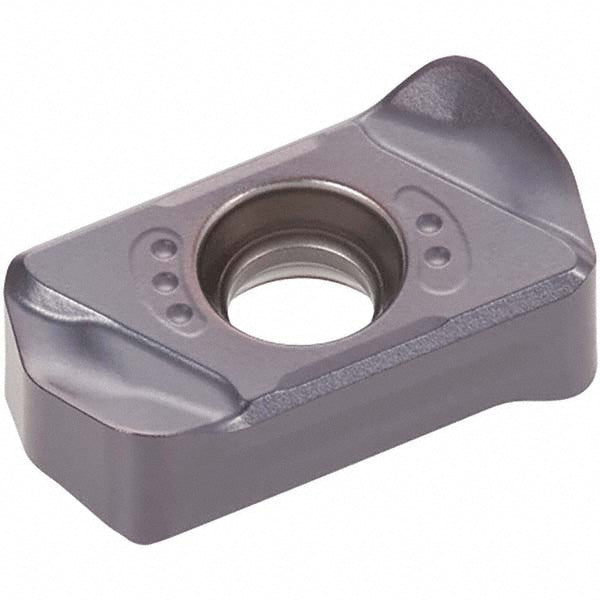

LNMU0303ZER-MJ AH8015 Solid Carbide Insert, Grade AH8015, AlTiN - Tungaloy 6754162

Tungaloy

LNMU0303ZER-MJ AH8015 Solid Carbide Insert, Grade AH8015, AlTiN - Tungaloy 6754162

MFR# 6754162ISO/ANSI# LNMU0303ZER-MJ AH8015Cat# LNMU0303ZER-MJSeries LNMU

$18.90List $24.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeAH8015
MaterialSolid Carbide
CoatingAlTiN

Description

The Tungaloy 6754162 is a LNMU0303ZER-MJ AH8015 solid carbide indexable insert, grade AH8015, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeLNMU0303ZER-MJ AH8015
Chip breakerMJ
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityEXN03; TXN03; HXN03-M; EXN03-C; HXN03-M-C; EXN03-N
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size03
Insert size code0303
Insert styleLNMU
Iso codeLNMU0303ZER-MJ AH8015
Length0.1260
Length range0.0000 to 0.3200
Manufacturers catalog numberLNMU0303ZER-MJ
Manufacturer gradeAH8015
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeM10; S10
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsISO
Thickness0.1690
Thickness range0.1500 to 0.1750
Width0.2360
