Tungaloy

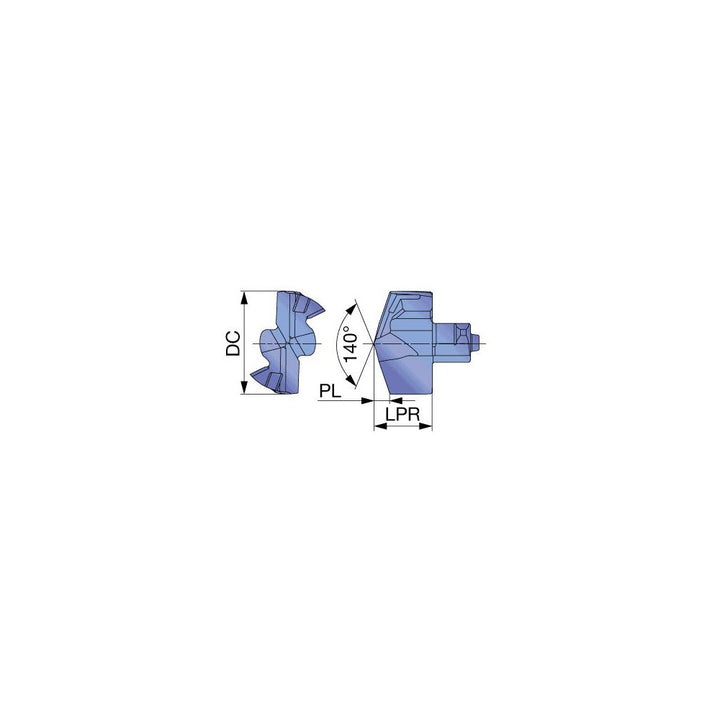

Carbide Insert, Grade AH9130, TiAlN - Tungaloy 6771201
MFR# 6771201Series DMP
$99.06List $127.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeAH9130
CoatingTiAlN
Description
The Tungaloy 6771201 is a carbide indexable insert, grade AH9130, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsHolemaking
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in1/2
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.1911
Height (mm)7.00
Included angle degree140
Insert holding methodClamp
Insert seat size12
Iso numberDMP127
Manufacturer gradeAH9130
Material gradeP15; P35; M25; M35; K10; K25; S15; S30
Number of flutes2
Overall length projection0.2679
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleDMP
Tip materialSolid Carbide
