Tungaloy

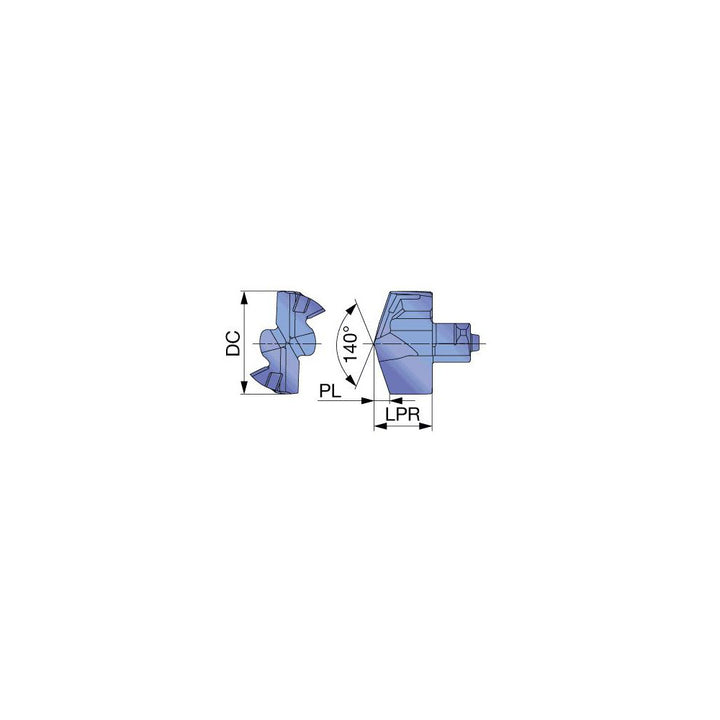

Carbide Insert, Grade AH9130, TiAlN - Tungaloy 6771249
MFR# 6771249Series DMP
$114.93List $147.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeAH9130
CoatingTiAlN
Description
The Tungaloy 6771249 is a carbide indexable insert, grade AH9130, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsGeneral Drilling; Holemaking
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter (mm)17.50
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2766
Height (mm)10.00
Included angle degree140
Insert holding methodClamp
Insert seat size17
Iso numberDMP175
Manufacturer gradeAH9130
Material gradeP15; P35; M25; M35; K10; K25; S15; S30
Number of flutes2
Overall length projection0.3822
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleDMP
Tip materialSolid Carbide
